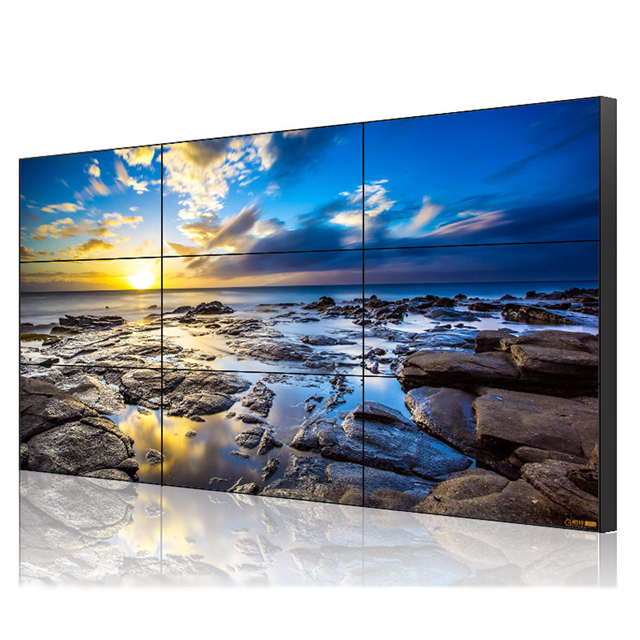

65 Inch Wall Mount 3x3 Video Wall Controller With rs232 Used For Public Center For Sale
Packaging and Shipping
Firstly, the advertisement player will be packed with plastic wrap.
Secondly, the lcd screen advertisement player will be packed in carton.
Finally, the lcd screen is reinforced with wooden case for outer packing.
About our company
Shenzhen Mercedes Technology Co., Ltd was established in 2003 with registered capital of 500, 000 Yuan. Our company is a private high-tech enterprise and owns intellectual property rights and national patent certificates for 80% of our product. Since the very beginning of our establishment, our company has been dedicated to the development and production of LCD products.
Please keep in mind that we can offer you 8-65 inch LCD HD monitors, embedded HD monitors, 3G-WIFI network AD players, AD players in bus, AD players in building, ultra-thin frame AD players, portable LCD AD player, AD player boxes, touch display and LCD TV.
Technical Parameter
| Model | MD-650 |
| Panel brand | Well known famous brand |
| Unit dimensions | 65” |
| Panel type | TFT-LCD |
| Brightness | 800cd/ m2 |
| Contrast | 1200:1 |
| Optimal resolution | 1980×1080 |
| Aspect ratio | 16:9 |
| Display color | 16.7M |
| Response time | 8ms |
| Pixel pitch | 0.53025 (H) ×0.53025mm (V) |
| Viewing Angle | 178º (H)/178º(V) |
| Lamp life | 50000 (minimum) hours |
| Operating temperature | 0~50℃ |
| Humidity | 10%~80% |
| Surface treatment | Matte (Haze 5.5%), |
| Display area | 1214×684mm (horizontal*vertical) |
| Dimensions | 1215.2× 686 mm (horizontal*vertical) |
| Dimensions | 58.53 (Max.) mm (thickness) |
| Physical seam | 5.5mm |
| Basic functions | M rows × N columns, multi-unit splicing, full-screen display, split-screen display, any combination display (multi-channel signal), PIP signal cross screen roaming, superimposing and zooming |
| Image splicing controller (optional) | 1. Multi-layer cross screen roaming and superimposing, scaling of all windows in any proportion and any size in full range; 2. Support intelligent split of single, four, six, nine and sixteen screens, built-in HD mixing matrix |
| Input and output |
| High definition multimedia interface | HD.MI 1-channel |
| Digital video interface | DVI-D 1-channel |
| D-Sub interface | VGA 1-channel |
| Composite video input | BNC 2-channel |
| Composite video output | BNC 2-channel |
| Control interface | RJ45 (RS-232 protocol) |
| Video |
| Video format | PAL/NTSC/SECAM |
| Compatible input | 480P, 576P, 720P, 1080P |
| 3D noise reduction | Yes |
| Video noise reduction | Yes |
| Power supply |
| Voltage input | AC100V~240V 50/60HZ |
| Power loss | ≤220W |
| Standby power | ≤3W |
| Mounting |
| Wall-mounted, floor-standing enclosure (optional) |
